Drilling and tapping cycle format example VMC programming in Hindi , VMC programming example pdf
Drill Size -
• M10 ki tapping ke liye drill size 8.5 mm
Drill carbide use in cast iron metal and use HSS drill for alloy steel like ms , etc

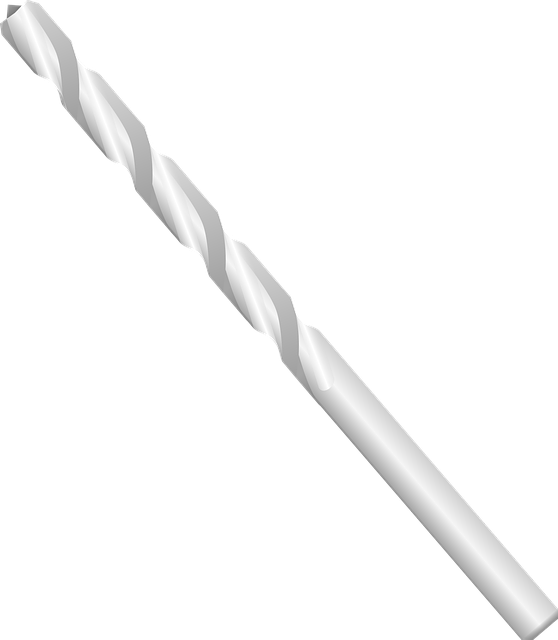

• Drill image -
Drilling and tapping cycle format example VMC programming in Hindi
Drilling cycle ka format mene apko neeche dikhaya hua hai , yadi hame kisi bhi plate or job me drill karna hai, to neche di hu drilling cycle ka use karke drill kar hain sakte hain
Format
O300;
T01M06;
G0 G90 G54 X30.0 Y20.0 S1000 M03;
G43 H20 Z100.0
G98G81 Z- 25.0 R2.0 F200;
G0 G80 Z100.0
G28 G91 Z0. 0 Y0.0;
M01;
Drilling cycle ka VMC programme
Tapping cycle ka VMC programme
O300;
T02M06;( M10*1.5)
G0 G90 G54 X30.0 Y20.0 S400 M03;
G43 H20 Z100.0
G98G84 Z- 25.0 R2.0 F600 ;
G0 G80 Z100.0
G28 G91 Z0. 0 Y0.0;
M01;
Note -
Upar Diya hua Maine typing cycle ka program jo ki M10 ki tapping hai jismein 1.5mm ki pich , iske liye hamen 8:50 mm ka Drill chalana padega
